Describe

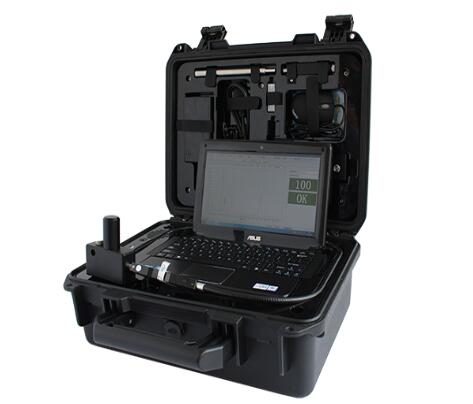

Smart-Raman Portable Raman Spectroneter is designed for on-site detection and
indentification.This product adopts box-type design,high integration and is easy to carry.Smart-Raman Portable Raman Spetrometer can deduct the fluorescence
automatically and eliminate the interference of fluorescence on Raman analysis.It can identify substance and analyze its composition,which is very suitable for rapid identification of gem filler and counterfeit.
Applied field
Drug detection,environmental analysis,Chemical detection,medicolegal expertise,mineral identification,Gemstone identification,Fossil analysis,Heritage analysis,Identification of true and false drugs,Coating identification,Raw material inspection.
Unique Intellectualized Software
Intelligent software operation:
The software interface can display the concerned wavelength of the current sample in real
time, and adjust the range of coordinates autmatically to make the spectrum always
demonstrates in an appropriate place. It is convenient for the comparison and analysis of
spectrum.
Spectrum Management:
The sofrware can record the spectrum of 20 samples at a time and change the spectrum's color, bold it, choose whether to show it, zoom it, normalize it to the same height, and track data and save it to the local. The software can select the
diamond master set according to the spectral distribution of it with different color grades.
Background Selection:
The software can set the color of the background and choose whether to display the grid.
Customized Report Printing:
Users can set the format of the jewellery detecting report on their own before printing it.
Diamond Color Measurement:
According to the spectral data of diamond samples, the software can calculate their color reference level rapidly.
Automatic Judgement:
Automatically judge diamond, and show PASS and NG
|
|
Features
. Open database
. Start from 1 point,any shape
. Accurately detect the type of sample
. Accurately detect the HPHTsynthetic diamond
. Accurately detect both loose diamond and diamond studded jewellery
|
|
Technical Specifications
|
Laser Wave Length
|
785±0.3nm
|
Laser's lifetime
|
>10000h
|
|
Laser Power
|
100-500mW,Continuously adjustable
|
Dark noise
|
|
|
Raman Wavenumber Range
|
150-3950cm-1
|
Integration time
|
8ms-10s
|
|
Resolution
|
8cm-1
|
S/N Ratio
|
1000:1
|
|
Detector
|
Hamamatsu backlight arrasy CCD, the area of CCD is not less than 24.5mm×1.39mm with TEC Refrigeration of level3, able to refrigerate to -15℃~-20℃
|
|
Sample Mode
|
No need to prepare samples, use probes to detector jewelry samples for In-situ nondestructive detection
|
|
Internal Electric Source
|
Internal electric source, with rechargeable lithium cells, can use more than 3h
|
|
External Power Supply
|
AC90-240/50Hz
|
|
Raman Jewelry Database
|
Support the automatic peak search and correlation matching, With common jewelry Raman spectroscopy data, open database, added support and data import and export
|
|
Signal Interface
|
USB2.0
|
|
Product Sizes(mm)
|
400(L)×170(H)×310(D)
|
|
Power Consumption
|
220V-50HZ/250W
|
Detection Substances
Raman Spectrogram
|
